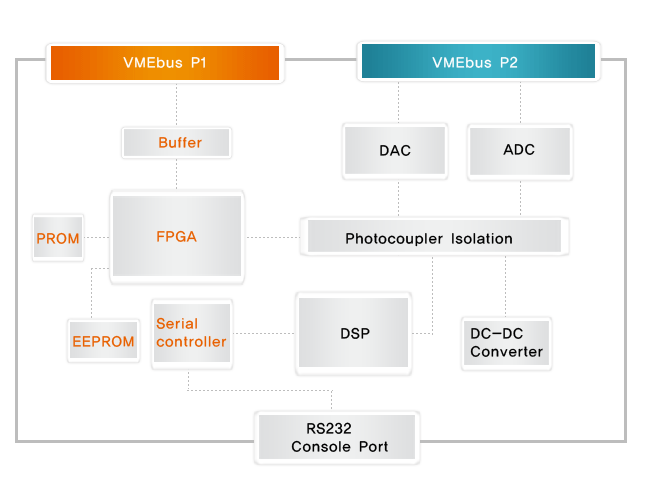

LKV510은 150MFLOP 75MIPS의 성능의 DSP를 탑재한 Intelligent Analog I/O Board 로서 Opto-Isolation된 16 Channels Analog Input과 8 Channels Analog Output Channel를 가지고 있으며, 주문 형태에 따라 12 Bits와 16 Bits Resolution이 가능하다.




주문사양(Ordering Information)

LKV510-XY
X : CPU Y : Resolution
1 : With CPU 1 : 12 Bits
2 : Without CPU 2 : 16 Bits


특장점

1. Analog 입력

- 16 Differential input and 2 Single ended Input Channels (Instrument AMP used per channel)
- 12 Bits or 16 Bits High Resolution Version
- Accuracy 12 Bits : 0.1% FSR, 16 Bits : 0.01%FSR
- Auto Scanning : Continuously digitizes input and stores result in dual ported data registers.

- Various input signal range by Jumper selection
: Single Mode(5V, 10V)
: Dual Mode( ± 5V, ± 10V)
: Current Mode(4mA to 20mA)

- Digital calibration with internal DSP or Device Driver
- Built-In-Test with internal references
- 200KHz aggregate sample rate
- Programmable Scan Time Setting
- Over voltage and surge protection per channel
- Optional filters(LPF, HPF, BPF) by Option Board use
- P2 rear input

2. Analog 출력

- 8 analog output channels
: DAC per output channel
: 10mA maximum output current per channel when voltage output

3. Digital 입/출력

- Opto Isolated Digital Input 2 channels
- Opto Isolated Digital Output 2 channels


4. DSP(TMS320VC33-150)

- 150MFLOPS, 75 MIPS
- 32 Bits High Performance floating point DSP
- 256K x 32 Bits external SRAM
- One port serial support(RS-232)
- Two 32-Bit Timers
- Option Board for Memory extension or ETC
- Watch Dog Reset

5. 인터페이스

Standard address mode(A24) or short address mode(A16) support
- Programmed VME bus Interrupt
- Front panel status LED(RUN, FAIL, ACC, DIAG, DIA, DIB, DOA, DOB)

6. 절연

- Optical Isolation 1500V analog GND to digital GND

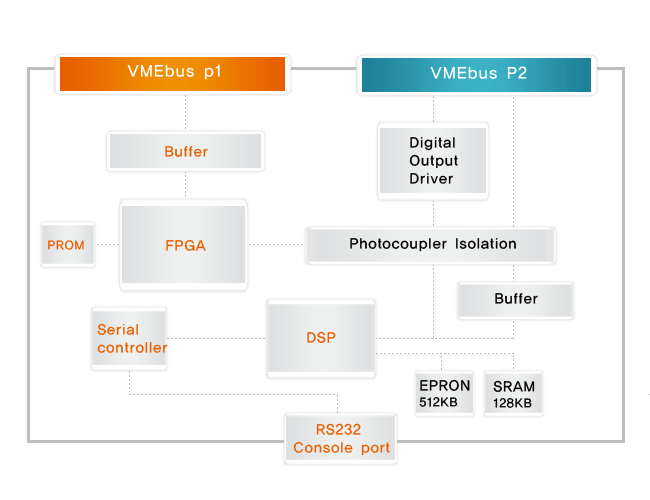

LKV520은 48 Channels Digital In/Out Board로서 48 Channels 중 16 Channels는 24V Relay In/Out 이 가능하며, 나머지 32 Channels는 TTL In/Out 이 가능하도록 설계되어 사용자에게 다양성과 편리성을 제공한다.

주문사양(Ordering Information)

LKV520-X
X : CPU
1 : With CPU
2 : Without CPU

특장점

- VME Slave Board : 48 Channels Digital In/Out Board
- 24V Relay Digital In/Out : 16 Channels(Internal Optical Isolation)
- TTL Level Digital In/Out : 32 Channels(External Optical Isolation)
- Input & Output Channels
- Bidirectional Input / Output
- Isolation Voltage : Max 5KVrms
- Extension Board Stacking Available
- One port Serial(RS232) - Option
- DSP Controller(BIT & Monitoring) - Option
